Traefik Routing

This module synchronizes Decidim organization hosts and subdomains to a Redis database using Traefik's KV store format. This enables dynamic routing configuration for multi-tenant Decidim instances behind a Traefik reverse proxy.

How It Works

The routing system:

1. Generates unique identifiers: Each organization gets a UUID (voca_external_id) that is automatically created when the organization is created
2. Syncs routing rules: Organization hosts and secondary hosts are synced to Redis in Traefik's KV format
3. Configures services: Sets up load balancer configuration with health checks
4. Supports multiple servers: Uses unique keys (UUIDs) to avoid conflicts when multiple servers sync routes

Features

• Automatic routing sync: Organizations are automatically synced when created or updated
• Multi-host support: Supports both primary host and secondary hosts per organization
• Health check configuration: Configures Traefik health checks for service monitoring
• TLS configuration: Automatically configures certificate resolvers (skips for localhost domains)
• Multi-server support: UUID-based keys prevent conflicts when multiple servers sync routes

Architecture

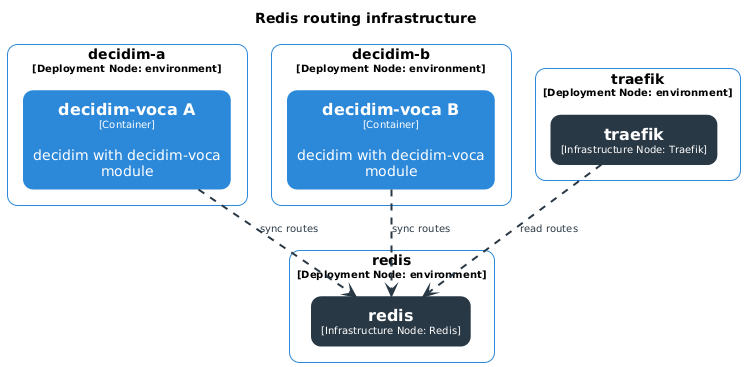

Infrastructure

• Decidim app servers push routing keys into Redis (Traefik KV).
• Traefik nodes read from the shared Redis instance to build routers and services dynamically.
• Redis (Traefik KV) stores routing data centrally, eliminating static file reloads.

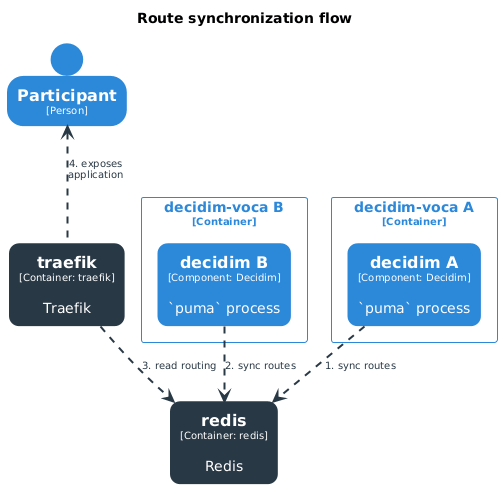

Routing flow

Scenario: Given a Decidim organization A and a Decidim organization B, when organization A is created or updated:

1. The organization emits create/update hooks that enqueue a sync job
2. The job ensures the organization has a UUID (voca_external_id)
3. Router/service entries are written to Redis in Traefik format
4. Traefik consumes those keys, generates SSL certificates, and exposes the host

Usage

Sync Routes

To sync all organization routes to Redis:

bundle exec rake decidim:voca:sync_routes

This task:

• Iterates through all Decidim organizations
• Ensures each organization has a voca_external_id
• Syncs routing configuration to Redis
• Updates common service configuration

View Routes

To view all registered routes:

# JSONL format (default): host => service URL
bundle exec rake decidim:voca:routes

# Traefik format: full Traefik configuration
FORMAT=traefik bundle exec rake decidim:voca:routes

Environment Variables

Variable	Description	Default
TRAEFIK_REDIS_URL	Redis connection URL for Traefik KV store	redis://traefik-db:6379/1
MASTER_ID	Service identifier for load balancer	Required
MASTER_IP	Service URL/IP address	Required
TRAEFIK_SERVICE_PROTOCOL	Protocol for service URL	http
TRAEFIK_SERVICE_PORT	Port for service URL	8080
TRAEFIK_SERVICE_HEALTHCHECK_PATH	Health check endpoint path	/health/live
TRAEFIK_SERVICE_HEALTHCHECK_PORT	Health check port	8080
TRAEFIK_SERVICE_HEALTHCHECK_INTERVAL	Health check interval	60s
TRAEFIK_SERVICE_HEALTHCHECK_TIMEOUT	Health check timeout	10s
TRAEFIK_CERT_RESOLVER	Certificate resolver name for TLS	letsencrypt

info

Virtuozzo/Jelastic environments expose MASTER_ID and MASTER_IP natively. If you don't use Jelastic, set these variables:

• MASTER_ID: a random unique identifier
• MASTER_IP: an IP address that the Traefik instance can reach

Routing Configuration

Each organization creates the following Traefik router configuration:

• Router rule: Host(primary_host) || Host(secondary_host_1) || ...
• Entrypoint: websecure (port 80)
• Service: Points to service-{MASTER_ID}
• Priority: 100
• TLS: Uses configured cert resolver (skipped for .localhost domains)

The service configuration includes:

• Load balancer server URL
• Health check path, port, interval, and timeout

Requirements

• Redis instance accessible to both Decidim and Traefik
• Traefik configured with Redis KV provider
• MASTER_ID and MASTER_IP environment variables set
• Organizations must have valid host configurations
